Air Conditioner Motion Sensor Controller

Name: Air Conditioner Motion Sensor Controller
Brand: Rayzeek
SKU: RZ050
Price: 27 USD
Availability: InStock

RZ050

$27.00

詳細を見る

お問い合わせ

今すぐ購入

製品の特長

Smart PIR Motion Sensor: Automatically turns off your AC when vacant, with optional auto-ON upon room entry.
Energy Saving: Acting as an advanced occupancy sensor, save energy bills up to 20% ~ 50%.
Wireless & Battery-Powered: Easy DIY installation, no wiring required.
Learns Your AC Remote: Learns required OFF and optional ON commands (compatible with discrete ON/OFF remote codes).
Customizable Time Delay: Choose from 15min, 30min, 1h, or 2h settings.
インテリジェントなナイトモード： Prevents accidental shut-off in the dark (< 1 Lux) while occupants sleep.
Window/Door Sensor Option: Need window/door shut-off? Check our RZ050-DS model with magnetic contact sensors.

お探しの製品ではありませんか？製品ポートフォリオを見る：

専門家に相談する

迅速な配送：99%の在庫あり

人感センサー搭載製品のフルラインアップ

お問い合わせ大口のお取引・OEM/ODMのご相談はこちら

Take Control of Your AC and Your Energy Bills with the RZ050

The RZ050 Air Conditioner Motion Sensor Controller is your solution to a more energy-efficient and comfortable home or business. This intelligent device uses a PIR motion sensor to detect room occupancy, automatically sending an “OFF” signal when the room is vacant, while supporting an optional learned “ON” signal to turn on the AC upon initial entry.

Easy to install, simple to use, and compatible with most split AC units, the RZ050 is the smart choice for anyone looking to save money and reduce their environmental impact.

Looking for Door & Window Sensors? Check the RZ050-DS Series

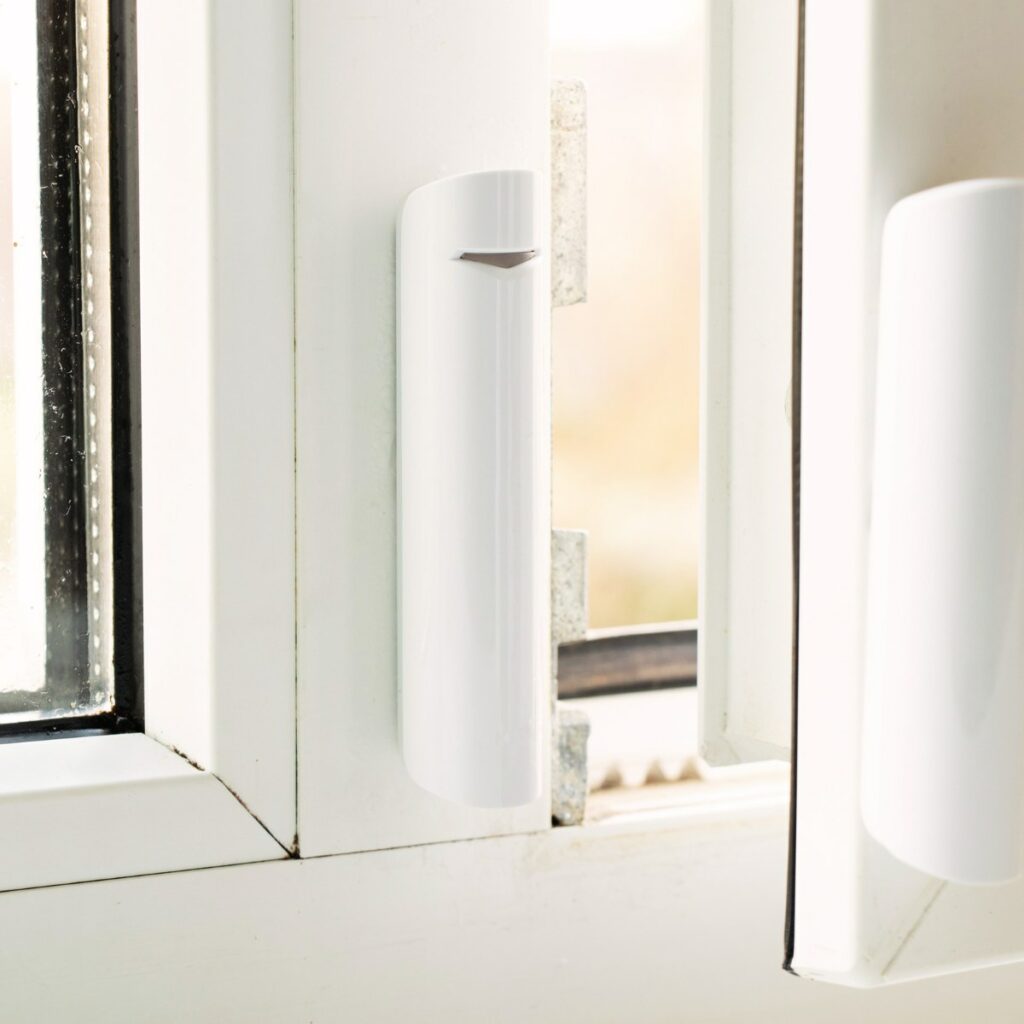

While the standard RZ050 operates as an independent PIR motion controller, our product family also offers door and window monitoring through the RZ050-DS series. The RZ050-DS model pairs wirelessly with magnetic contact sensors to automatically power off the AC whenever a door or window is left open.

If your rooms are frequently aired out or left with open windows, explore the RZ050-DS air conditioner controller to add magnetic contact sensors to your climate setup.

Smart Uses for Your RZ050: Dual-Setpoint Temperature Control & More

Beyond simply turning off your AC, the RZ050 offers smart dual-setpoint temperature control. By learning specific temperature commands from your AC remote, you can create a more nuanced approach to climate management.

Dual-Setpoint Temperature Regulation

With the RZ050’s learning capability, you can train it to switch between active and setback temperatures instead of shutting off power completely. For example, it can transmit a comfortable startup temperature (such as 21°C) when someone enters the room, and shift to an energy-saving setback temperature (such as 28°C) when the room is unoccupied, ensuring comfort while minimizing energy waste.

Ideal for Hotels, B&Bs, Vacation Rentals, Offices, and Homes

The RZ050 is a versatile solution for any environment where AC units are used. Hotels and B&Bs can significantly reduce energy costs by preventing guests from leaving ACs running in empty rooms. Offices can benefit from automated shut-off during off-hours or in unused meeting rooms. And homes can enjoy the convenience and savings of a smart AC system without the need for expensive replacements.

特長、メリット、仕様

特長とメリット

Automatically turns off the air conditioner when the room is left empty, with optional automatic turn-ON upon room entry.
Compatible with remote-controlled split AC units (requires discrete OFF code for shutoff; discrete ON & OFF for dual control).
インテリジェントなナイトモード： Suppresses automatic shut-off when dark (<1Lux) to protect sleeping occupants, while preserving motion-activated turn-ON upon entry.
Safe and Reliable: Operates via infrared commands without interfering with your AC’s internal wiring or warranty.
Battery-Powered: Cordless operation with at least 1 year battery life using 2 standard AAA batteries.
Wireless Design: Fast, easy DIY installation—simply mount with included adhesive tape or screws.
Adjustable Time Delay: Select from 15min, 30min, 1h (default), or 2h vacancy countdowns (automatically clamps to 1h or 2h in Night Mode).
Window/Door Sensor Option: Need opening sensors? Check our companion RZ050-DS model designed for door and window monitoring.
Low Battery Indicator: Flashes red light 5 times to notify you when batteries need replacing.
Motion Detection Light: Red lens detection indicator can be turned ON/OFF as desired.

機能・特徴

電圧

2.5V-3.5VDC(2 AAA batteries)

遅延時間

options 15min, 30min, 1h(default), 2h.

動体検知範囲

最大6〜9m

赤外線送信範囲

<10M

IR送信方向

30 degree

設置方法

壁へのネジ留めまたは貼り付け

Supported commands

Learned IR OFF (required); learned IR ON or dual temperature setpoints (optional)

サイズ

45 x 70 x 64 mm

Indoor use only

Indoor use only, 0~40°C relative humidity： up to 90%

比較表

	RZ050	RZ050-DP	RZ050-DS
エアコン自動制御モード	エアコンをオフにするエアコンをオン/オフにする（オプション）	エアコンをオフにするエアコンをオン/オフにする	エアコンをオフにする
窓/ドアセンサー対応	いいえ	いいえ	標準キットには1つまたは2つのドアセンサーが含まれています（RZ050-DS-1 / RZ050-DS-2）追加のドアセンサー購入可能
電源	バッテリーのみ	バッテリー USB *	USBのみ *

注：USB電源アダプターはパッケージに含まれておりません。ご購入はこちら（プラグタイプ： US, UK, EU).

よくあるご質問

RZ050は私のエアコンで使用できますか？

The RZ050 is compatible with split AC units operated by infrared remotes with discrete commands. For vacancy shutoff only, a discrete OFF command is required. For dual turn-ON and turn-OFF control, the remote must have separate, discrete codes for ON and OFF. Remotes with a single toggle button for both power ON and OFF are not supported.

RZ050エアコン用人感センサーの設置方法を教えてください。

設置は簡単で、配線工事は不要です。付属の粘着テープで壁に貼り付けるか、ネジで取り付けることができます。詳細な手順は取扱説明書に記載されています。

バッテリーの持続時間はどのくらいですか？

RZ050は長寿命設計となっており、通常の使用環境で通常1年以上持続します。

ナイトモードとは何ですか？

Night Mode prevents the AC from turning off while you sleep. When ambient brightness is below 1Lux, the controller suppresses the automatic OFF command so sleeping occupants are not interrupted. Motion detection remains active and can still turn the AC ON upon room entry if the ON command has been learned.

RZ050を使用してエアコンを「ON」にすることはできますか？

Yes. In addition to the required OFF command, the RZ050 can learn an optional ON command (or startup temperature) from your AC remote. Upon the first motion detected when entering an unoccupied room, the RZ050 automatically transmits the learned ON signal to your AC. Note: To configure automatic turn-ON, the ON command must be learned immediately following the OFF command setup by holding the Mode button for 10 seconds. Re-learning an OFF command clears any previously stored ON command.

Why won’t the AC turn back on automatically after I turn it off with my remote?

The RZ050 operates open-loop without telemetry feedback from the AC. If you manually turn off the AC with your remote while staying in the room, the RZ050 still assumes the room is occupied and the AC is running. In this state, motion only resets the vacancy countdown. To restore automatic turn-ON, the space must remain vacant until the time delay expires and the RZ050 transmits its own OFF signal, or you can turn the AC back on manually with the remote.

RZ050の保証期間はどのくらいですか？

RZ050には1年間の限定保証が付帯しています。

RZ050に問題が発生した場合はどうすればよいですか？

取扱説明書のトラブルシューティングガイドをご参照ください。解決しない場合は、カスタマーサポート（[email protected]）までお問い合わせください。

Can I use door and window sensors with the RZ050?

The standard RZ050 is an independent PIR motion controller and does not connect to external door sensors. If you need your AC to automatically shut down when doors or windows are left open, that capability is supported by another model in our series: the RZ050-DS Air Conditioner Controller, which pairs wirelessly with RZ001 magnetic contact sensors.

How does temperature-based control work instead of turning the AC completely off?

The RZ050 can learn specific temperature signals from your AC remote instead of power commands. It learns an active startup temperature (e.g., 21°C) triggered upon room entry, and an energy-saving setback temperature (e.g., 28°C) triggered after the vacancy delay expires.

動画

RZ050 AC人感センサーのご紹介

RZ050 ユーザーガイド

RZ050 AC 互換性テスト
